Name: Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line
Brand: Guangdong Hwashi Technology inc.
SKU: WL -FS -100K
Price: 225,000.00 USD
Availability: InStock

Evde > Ürünler > Dikiş Kaynak Makinesi >

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line

automatic sink rolling machine

welding production line equipment

water tank seam welder

Menşe yeri:

Çin

Marka adı:

Hwashi

Sertifika:

CE,CCC,ISO

Model numarası:

WL -FS -100K

Bizimle İletişim

Teklif Et

Ürün Ayrıntıları

Ürün adı:

Paslanmaz çelik mutfak lavabo dikiş kaynak makinesi

Aşındırıcı Bant Genişliği:

Yarı otomatik lavabo kaynağı

Boyut:

780x1250x1800mm

Kontrol sistemi:

Plc

kaynak genişliği:

5-20mm

Minimum Kaynak Kalınlığı:

0.2 mm

Gerilim:

380V,2 Faz,50/60Hz

Makine tipi:

Direnç kaynak makinesi

Hizmet ömrü:

8-10 yıl

Ağırlık (kg):

400kg

Ödeme ve Nakliye Şartları

Min sipariş miktarı

Fiyat

pazarlık edilebilir

Ambalaj bilgileri

deniz değerli ahşap paket

Teslim süresi

Ödemenizi aldıktan 7-30 iş günü sonra

Ödeme koşulları

T/T, L/C

Yetenek temini

Ayda 50 Set

İlişkili Ürünler

Video

Stainless Steel Sink Grinding Machine CNC Automatic Sink Edge Polishing Machine

En İyi Fiyatı Alın

Video

Yağ Tamburu Kutusu Isıtma Radyatörü Uçak Yakıtı için Güçlü Özelleştirilmiş Dikiş / Rulo Kaynak Makinesi

En İyi Fiyatı Alın

Video

Hwashi Yüksek Kaliteli Yakıt Tankı için Uzunluklu Yuvarlak Dikiş kaynak Makinesi Otomatik Dikiş kaynak makinesi

En İyi Fiyatı Alın

Video

Otomatik CNC Paslanmaz Çelik Mutfak Lavabo Kupası Üretici Pompa Motoru Tipli Dikiş Kaynak Makinesi

En İyi Fiyatı Alın

Bizimle İletişim

+8613380655800

marketing@hwashi.com

Şimdi iletişime geçin

Ürün Tanımı

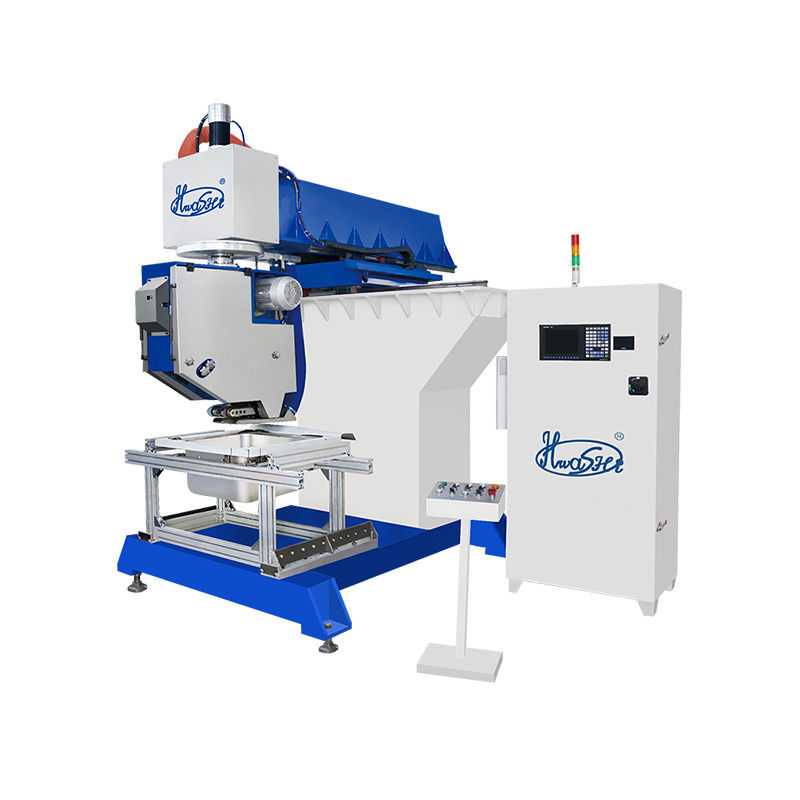

Hwashi WL-AT-PM1200 Automatic Sink Rolling Wheel Grinding Machine,Water tank Welding Production Line

Adopt medium frequency inverter power source of welding and large flat platform of locating method. Use the servo motor to drive X axis (locating mould) and Y axis (welding electrode) to operate under the preset procedure of PLC data. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction. The welding electrode will be designed to move vertically along the Y direction. The welding electrode is able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products. Suitable for welding the sink within the range of 1600x700x300mm. (customized)

Suitable for welding the sink within the range of 1600x700x300mm. (customized)
Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 1

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 1

CNC 3 Axis Stainless Steel Sink Seam Welding Machine

CNC 3 Axis Control Stainless Steel Kitchen Sink Seam Welding Machine is a method that uses a pair of roller electrodes instead of the cylindrical electrodes of spot welding, and the welded workpiece moves between the rollers to produce a sealed weld with a molten core overlapping each other to weld the workpiece together. Adopt medium frequency inverter power source of welding and large flat platform of locating method. Use the servo motor to drive X axis (locating mould) and Y axis (welding electrode) to operate under the preset procedure of PLC data. According to the stored position of welding spot, the welding product will be located inside the mould and moves horizontally along the X direction. The welding electrode will be designed to move vertically along the Y direction. The welding electrode is able to conduct 360° of rotation under the control of servo motor so it is suitable for welding different angles of products. Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 2

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 2

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 3

Hwashi Wl-at-Pm1200 Automatic Sink Rolling Wheel Grinding Machine, Water Tank Welding Production Line 4

CNC Sink Edges Grinding and Polishing Machine

This is the special designed machine for grinding and polishing the seam after welding. Normally customer will choose to buy these two machines together so as to complete the production of kitchen sink. This CNC sink grinding special machine utilizes abrasive belt polishing principle. The abrasive belt is driven by electric motor to conduct polishing on the edge of the welded sink. There are two processes for polishing. Firstly, use the coarse abrasive belt to grind the redundant cutting edge and the projection welding spots. Then use the fine abrasive belt to conduct polishing treatment. After these two processes can meet the requirement of sink grinding and polishing treatment.
