Name: HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine
Brand: Guangdong Hwashi Technology inc.
SKU: WL-B-50K
Price: 157,805.00 USD
Availability: InStock

Evde > Ürünler > Punta Kaynak Makinesi >

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine

75KVA Power Spot Welding Machine

CE/CCC/ISO Certification Medium Frequency Inverter Spot Welder

Vertical Type MFDC Spot Welder

Menşe yeri:

Çin

Marka adı:

HWASHI

Sertifika:

CE/CCC/ISO

Model numarası:

WL-B-50K

Bizimle İletişim

Teklif Et

Ürün Ayrıntıları

Kullanım:

alın kaynağı

Garanti:

12 aylık

Güç:

75KVA

Sertifika:

CE/CCC/ISO

Servis Ömrü:

8-10 yıl

Soğutma suyu:

30L/dak

Renk:

mavi, müşterinin isteğine göre.

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 TAKIM

Fiyat

pazarlık edilebilir

Ambalaj bilgileri

deniz değerli ahşap paket

Teslim süresi

Ödemenizi aldıktan 7-30 iş günü sonra

Ödeme koşulları

L/C,T/T

Yetenek temini

Ayda 50 Set

İlişkili Ürünler

Video

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine

En İyi Fiyatı Alın

Video

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine

En İyi Fiyatı Alın

Video

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 75KVA Power

En İyi Fiyatı Alın

380V Giriş Voltajlı ve 25-75KW Gücünde Otomatik Elektrik Direnç Alın Kaynak Makinesi

En İyi Fiyatı Alın

Bizimle İletişim

+8613380655800

marketing@hwashi.com

Şimdi iletişime geçin

Ürün Tanımı

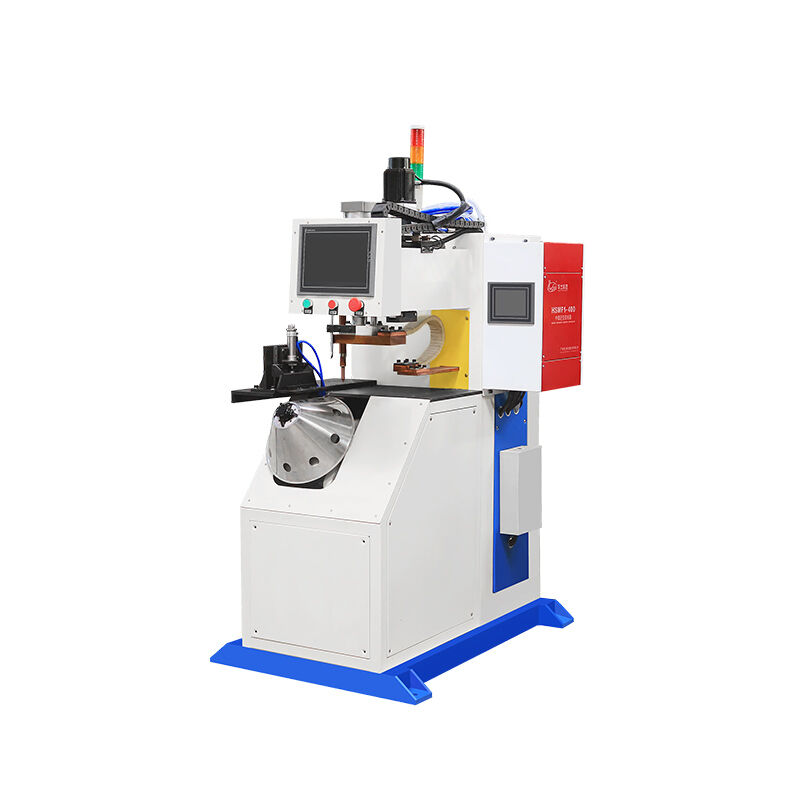

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine

The HWASHI WL-MF-250K is an advanced medium frequency inverter spot welding machine designed for precision metal sheet welding applications. This vertical type welding system utilizes innovative inverter technology to deliver superior performance and efficiency.

Advanced Technology Overview

This medium frequency inverter spot welder converts three-phase power supply through specialized rectification into 1000Hz AC voltage, which is then transmitted to a medium frequency transformer. The current is subsequently rectified to supply DC welding current, providing significant advantages in energy efficiency and performance.

Premium Construction Features

Thicker copper plates and copper belts ensure stable conductivity during welding operations
Customized electrodes designed for various materials including steel, aluminum, silver, stainless steel, and nickel steel
Enhanced performance reliability through superior material selection

Key Performance Advantages

Three-phase power supply with grid balance and minimal grid impact
High power factor of 0.7-0.9 (compared to 0.4 for power frequency), significantly reducing reactive power loss
Enhanced welding control accuracy with inverter frequency above 1000Hz
Superior welding quality with stable nugget size, minimal spatter, and excellent surface finish
Reduced energy consumption and infrastructure requirements
User-friendly interface with multiple welding parameter storage and real-time monitoring

Technical Specifications

Model	WL-MF-100K
Input Power (V/φ)	380/3
Rated Power (KVA)	100
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Max Short Circuit Current (KA)	21
Electrode Force (KG)	1000
Electrode Stroke (MM)	100
Dimension(LWH)	950mm800mm1675mm
Warranty	1 year

Application Examples
